Simulation Time Cycle Diagrams#

Scope#

These diagrams document the canonical time cycle driven by [simulation.time] inside the simulation orchestration layer.

They focus on:

  • normalization and validation of the simulation window,

  • canonical stress-period grid construction,

  • strict orchestration-level enforcement for flow-process time grids,

  • typed validation of [recharge_chronicle] payloads before runtime use,

  • propagation toward forcing preparation and flow solvers,

  • generator-based forcing built at fine resolution then aggregated to stress periods,

  • runtime coordination between canonical time_grid and solver tgrid.

The forcing path now separates three responsibilities:

  • hydromodpy.physics.hydrology.synthetic.forcing generates conceptual hydrological signals such as seasonal_step.

  • hydromodpy.physics.forcing.forcing_bridge converts loaded data to homogeneous or heterogeneous solver-ready forcing payloads.

  • hydromodpy.physics.forcing.time_alignment aligns series on simulation stress-period boundaries.

  • hydromodpy.physics.flow.time_forcing prepares the flow-side payload handed to the solver adapters.

Code map#

  • hydromodpy/simulation/planning/config.py: typed simulation settings and canonical time-window validation.

  • hydromodpy/physics/hydrology/synthetic/forcing.py: generator-side synthetic forcing helpers.

  • hydromodpy/physics/forcing/forcing_bridge.py: generic forcing conversion and unit handling.

  • hydromodpy/physics/forcing/time_alignment.py: stress-period aggregation.

  • hydromodpy/physics/flow/time_forcing.py: flow-side forcing preparation before adapter dispatch.

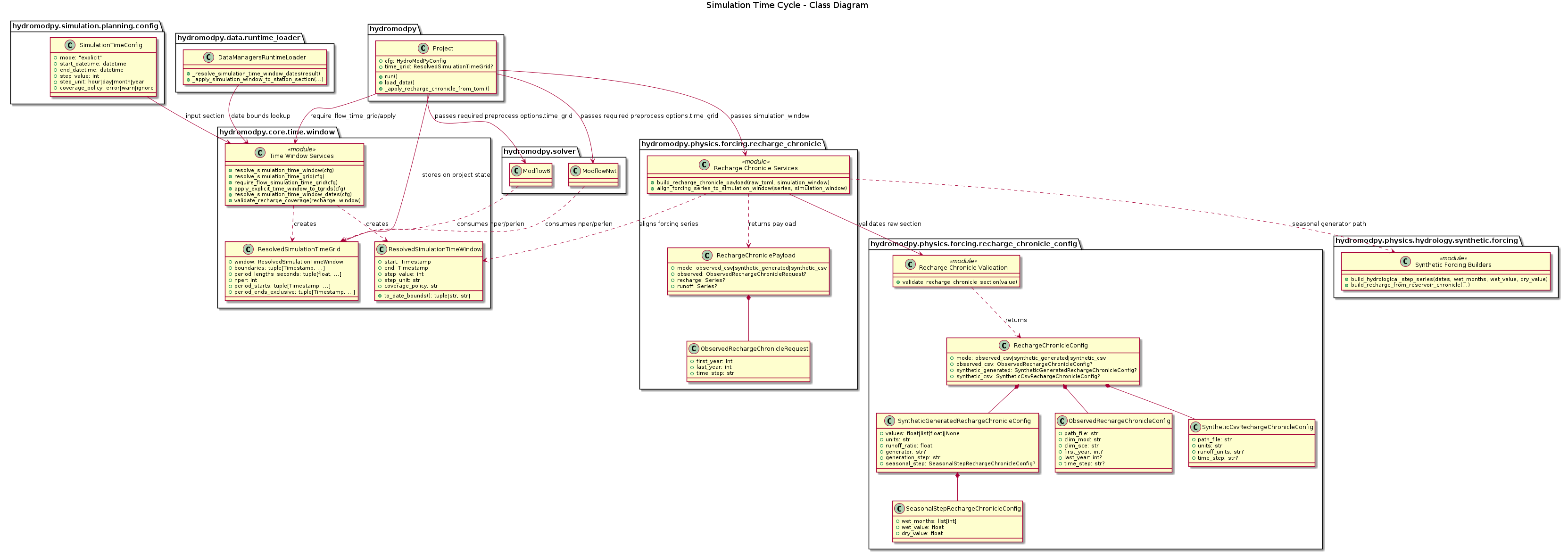

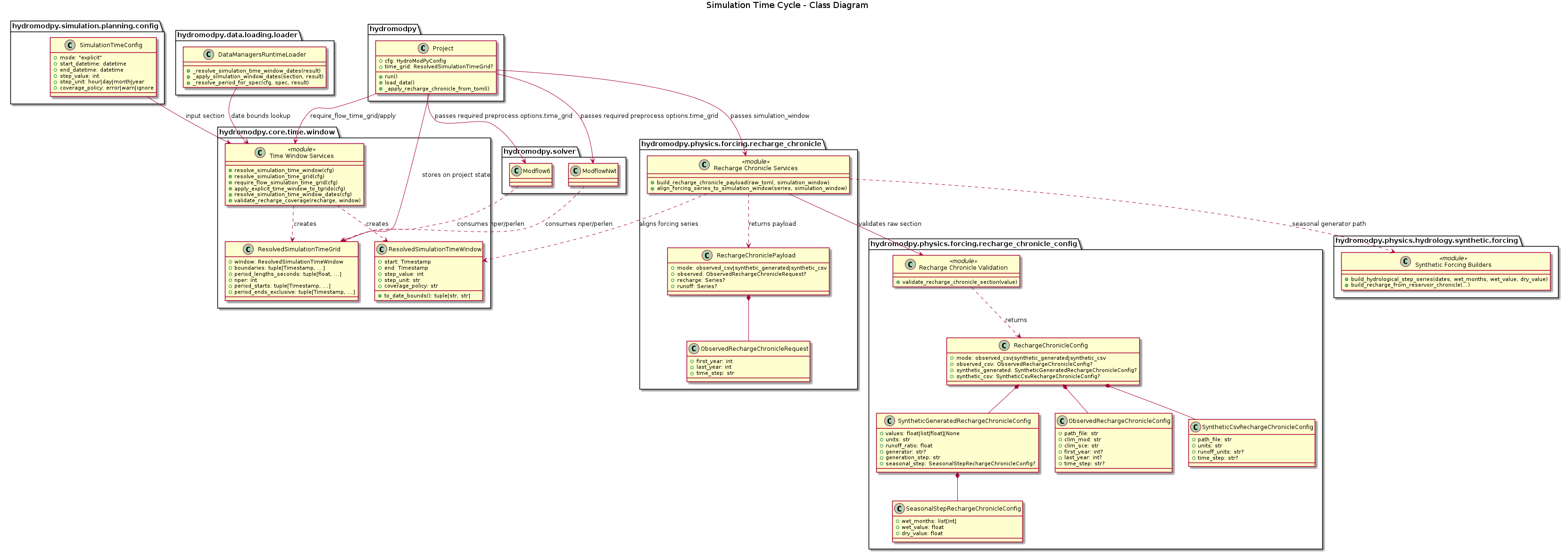

Class Diagram#

@startuml title Simulation Time Cycle - Class Diagram package "hydromodpy.simulation.planning.config" { class SimulationTimeConfig { +mode: "explicit" +start_datetime: datetime +end_datetime: datetime +step_value: int +step_unit: hour|day|month|year +coverage_policy: error|warn|ignore } } package "hydromodpy.core.time.window" { class ResolvedSimulationTimeWindow { +start: Timestamp +end: Timestamp +step_value: int +step_unit: str +coverage_policy: str +to_date_bounds(): tuple[str, str] } class ResolvedSimulationTimeGrid { +window: ResolvedSimulationTimeWindow +boundaries: tuple[Timestamp, ...] +period_lengths_seconds: tuple[float, ...] +nper: int +period_starts: tuple[Timestamp, ...] +period_ends_exclusive: tuple[Timestamp, ...] } class "Time Window Services" as TimeWindowServices <<module>> { +resolve_simulation_time_window(cfg) +resolve_simulation_time_grid(cfg) +require_flow_simulation_time_grid(cfg) +apply_explicit_time_window_to_tgrids(cfg) +resolve_simulation_time_window_dates(cfg) +validate_recharge_coverage(recharge, window) } } package "hydromodpy" { class Project { +cfg: HydroModPyConfig +time_grid: ResolvedSimulationTimeGrid? +run() +load_data() +_apply_recharge_chronicle_from_toml() } } package "hydromodpy.physics.forcing.recharge_chronicle_config" { class SeasonalStepRechargeChronicleConfig { +wet_months: list[int] +wet_value: float +dry_value: float } class SyntheticGeneratedRechargeChronicleConfig { +values: float|list[float]|None +units: str +runoff_ratio: float +generator: str? +generation_step: str +seasonal_step: SeasonalStepRechargeChronicleConfig? } class ObservedRechargeChronicleConfig { +path_file: str +clim_mod: str +clim_sce: str +first_year: int? +last_year: int? +time_step: str? } class SyntheticCsvRechargeChronicleConfig { +path_file: str +units: str +runoff_units: str? +time_step: str? } class RechargeChronicleConfig { +mode: observed_csv|synthetic_generated|synthetic_csv +observed_csv: ObservedRechargeChronicleConfig? +synthetic_generated: SyntheticGeneratedRechargeChronicleConfig? +synthetic_csv: SyntheticCsvRechargeChronicleConfig? } class "Recharge Chronicle Validation" as RechargeValidation <<module>> { +validate_recharge_chronicle_section(value) } } package "hydromodpy.physics.forcing.recharge_chronicle" { class ObservedRechargeChronicleRequest { +first_year: int +last_year: int +time_step: str } class RechargeChroniclePayload { +mode: observed_csv|synthetic_generated|synthetic_csv +observed: ObservedRechargeChronicleRequest? +recharge: Series? +runoff: Series? } class "Recharge Chronicle Services" as RechargeServices <<module>> { +build_recharge_chronicle_payload(raw_toml, simulation_window) +align_forcing_series_to_simulation_window(series, simulation_window) } } package "hydromodpy.physics.hydrology.synthetic.forcing" { class "Synthetic Forcing Builders" as HydrologyForcing <<module>> { +build_hydrological_step_series(dates, wet_months, wet_value, dry_value) +build_recharge_from_reservoir_chronicle(...) } } package "hydromodpy.data.loading.loader" { class DataManagersRuntimeLoader { +_resolve_simulation_time_window_dates(result) +_apply_simulation_window_dates(section, result) +_resolve_period_for_spec(cfg, spec, result) } } package "hydromodpy.solver" { class ModflowNwt class Modflow6 } SimulationTimeConfig --> TimeWindowServices : input section TimeWindowServices ..> ResolvedSimulationTimeWindow : creates TimeWindowServices ..> ResolvedSimulationTimeGrid : creates Project --> TimeWindowServices : require_flow_time_grid/apply Project --> ResolvedSimulationTimeGrid : stores on project state Project --> RechargeServices : passes simulation_window RechargeServices --> RechargeValidation : validates raw section RechargeValidation ..> RechargeChronicleConfig : returns RechargeServices ..> ResolvedSimulationTimeWindow : aligns forcing series RechargeServices ..> RechargeChroniclePayload : returns payload RechargeServices ..> HydrologyForcing : seasonal generator path RechargeChroniclePayload *-- ObservedRechargeChronicleRequest RechargeChronicleConfig *-- ObservedRechargeChronicleConfig RechargeChronicleConfig *-- SyntheticGeneratedRechargeChronicleConfig RechargeChronicleConfig *-- SyntheticCsvRechargeChronicleConfig SyntheticGeneratedRechargeChronicleConfig *-- SeasonalStepRechargeChronicleConfig DataManagersRuntimeLoader --> TimeWindowServices : date bounds lookup Project --> ModflowNwt : passes required preprocess options.time_grid Project --> Modflow6 : passes required preprocess options.time_grid ModflowNwt ..> ResolvedSimulationTimeGrid : consumes nper/perlen Modflow6 ..> ResolvedSimulationTimeGrid : consumes nper/perlen @enduml

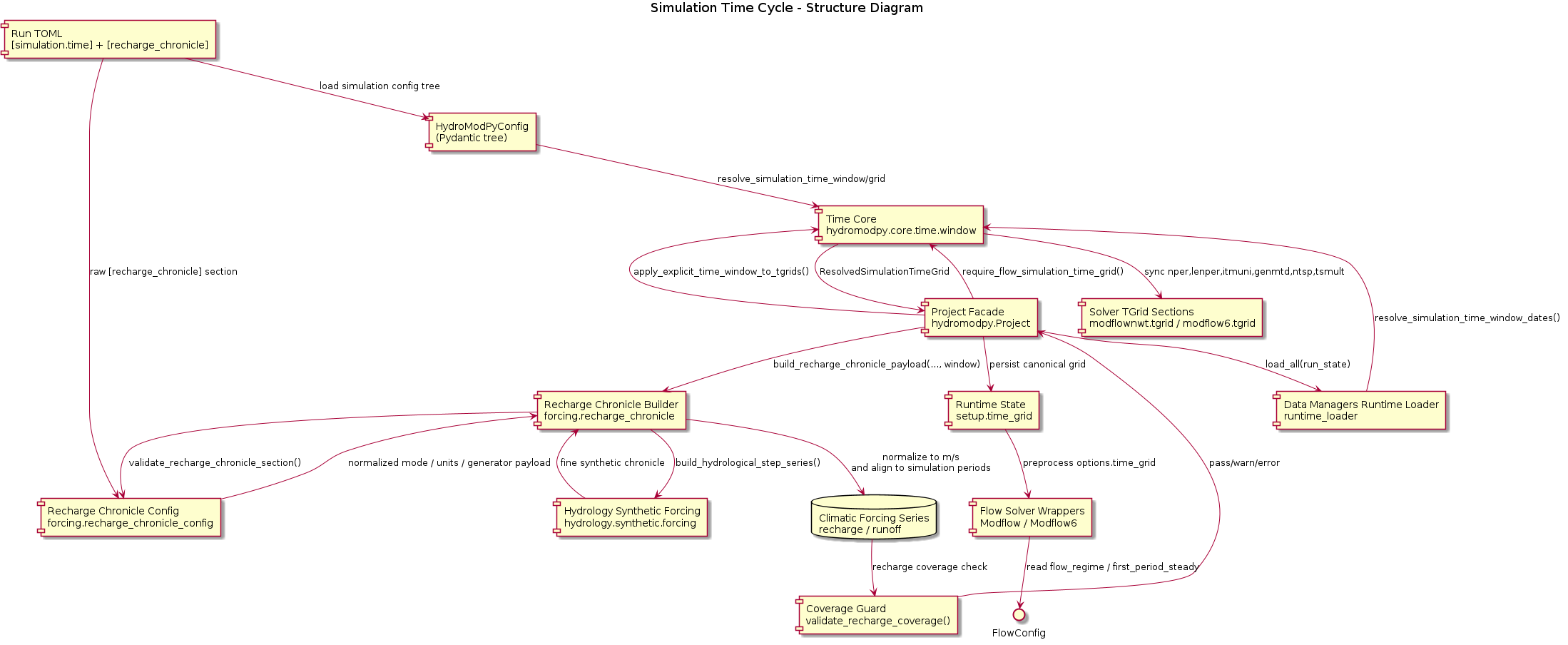

Structure Diagram#

@startuml title Simulation Time Cycle - Structure Diagram skinparam componentStyle rectangle component "Run TOML\n[simulation.time] + [recharge_chronicle]" as RunToml component "HydroModPyConfig\n(Pydantic tree)" as TypedConfig component "Time Core\nhydromodpy.core.time.window" as TimeCore component "Project Facade\nhydromodpy.Project" as Project component "Runtime State\nsetup.time_grid" as RuntimeState component "Solver TGrid Sections\nmodflownwt.tgrid / modflow6.tgrid" as SolverTgrid component "Data Managers Runtime Loader\nruntime_loader" as DataLoader component "Recharge Chronicle Config\nforcing.recharge_chronicle_config" as RechargeConfig component "Recharge Chronicle Builder\nforcing.recharge_chronicle" as RechargeBuilder component "Hydrology Synthetic Forcing\nhydrology.synthetic.forcing" as HydroForcing component "Coverage Guard\nvalidate_recharge_coverage()" as CoverageGuard component "Flow Solver Wrappers\nModflow / Modflow6" as FlowSolvers database "Climatic Forcing Series\nrecharge / runoff" as ForcingSeries RunToml --> TypedConfig : load simulation config tree TypedConfig --> TimeCore : resolve_simulation_time_window/grid TimeCore --> Project : ResolvedSimulationTimeGrid Project --> TimeCore : require_flow_simulation_time_grid() Project --> RuntimeState : persist canonical grid Project --> TimeCore : apply_explicit_time_window_to_tgrids() TimeCore --> SolverTgrid : sync nper,lenper,itmuni,genmtd,ntsp,tsmult Project --> DataLoader : load_all(run_state) DataLoader --> TimeCore : resolve_simulation_time_window_dates() Project --> RechargeBuilder : build_recharge_chronicle_payload(..., window) RunToml --> RechargeConfig : raw [recharge_chronicle] section RechargeBuilder --> RechargeConfig : validate_recharge_chronicle_section() RechargeConfig --> RechargeBuilder : normalized mode / units / generator payload RechargeBuilder --> HydroForcing : build_hydrological_step_series() HydroForcing --> RechargeBuilder : fine synthetic chronicle RechargeBuilder --> ForcingSeries : normalize to m/s\nand align to simulation periods ForcingSeries --> CoverageGuard : recharge coverage check CoverageGuard --> Project : pass/warn/error RuntimeState --> FlowSolvers : preprocess options.time_grid FlowSolvers --> FlowConfig : read flow_regime / first_period_steady @enduml

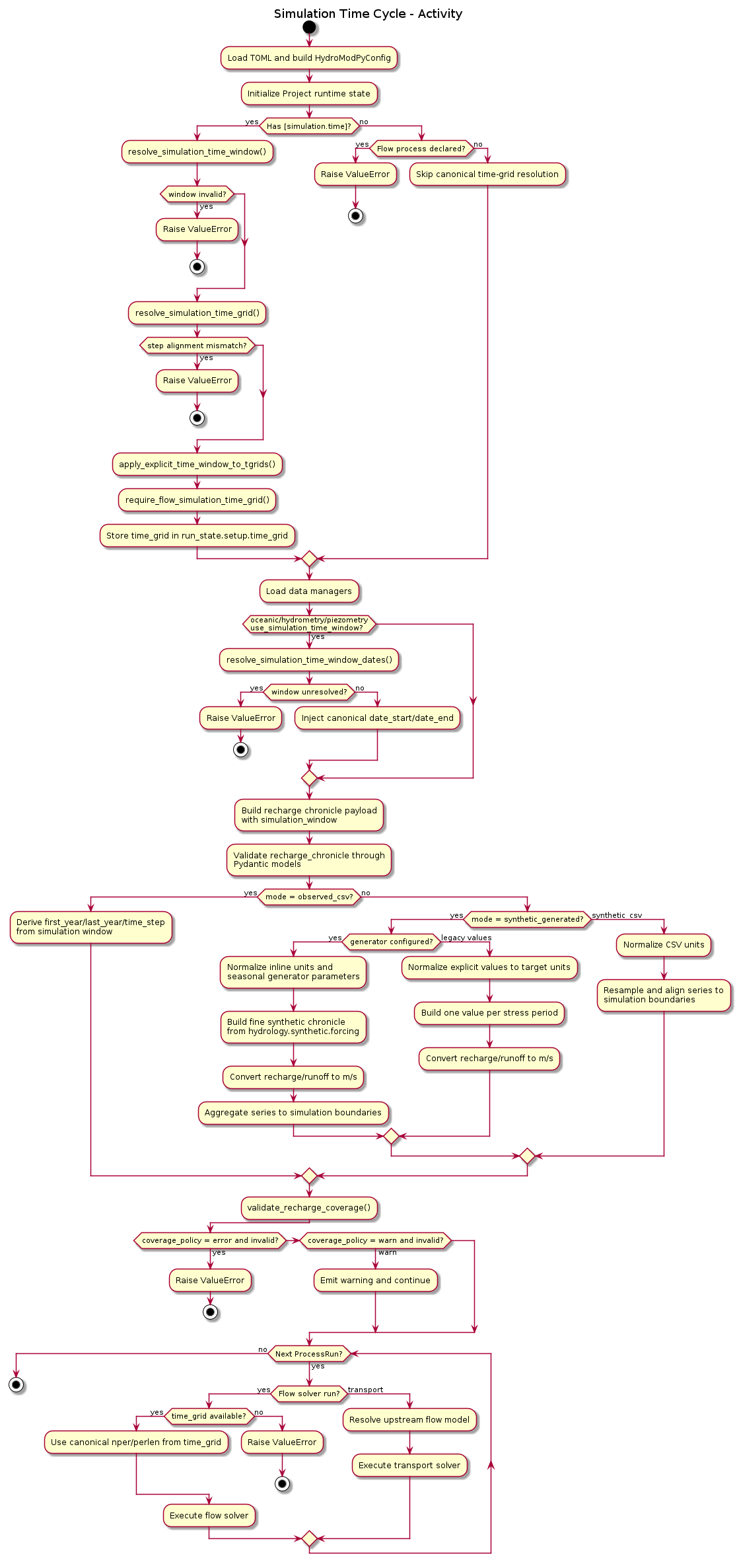

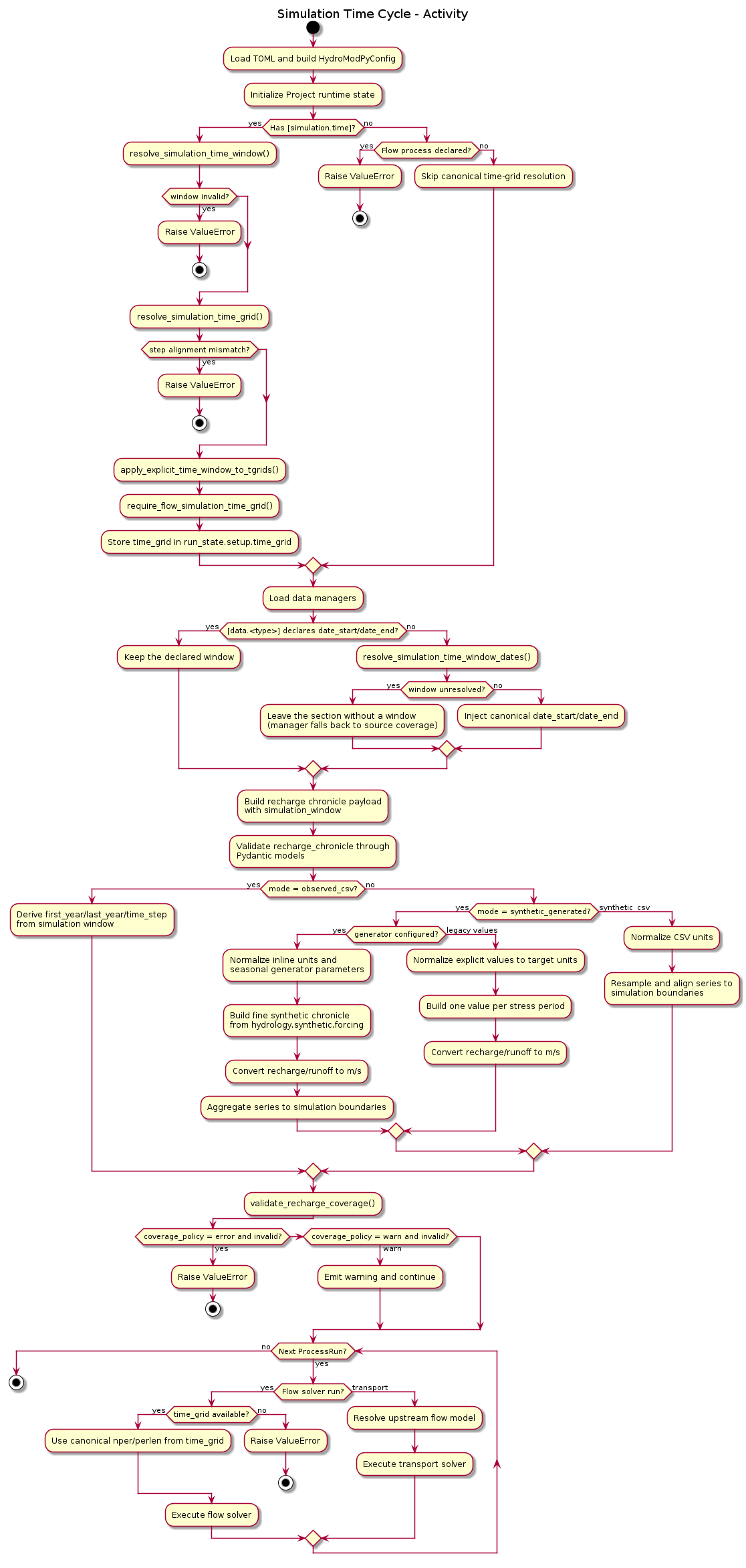

Activity Diagram#

@startuml title Simulation Time Cycle - Activity start :Load TOML and build HydroModPyConfig; :Initialize Project runtime state; if (Has [simulation.time]?) then (yes) :resolve_simulation_time_window(); if (window invalid?) then (yes) :Raise ValueError; stop endif :resolve_simulation_time_grid(); if (step alignment mismatch?) then (yes) :Raise ValueError; stop endif :apply_explicit_time_window_to_tgrids(); :require_flow_simulation_time_grid(); :Store time_grid in run_state.setup.time_grid; else (no) if (Flow process declared?) then (yes) :Raise ValueError; stop else (no) :Skip canonical time-grid resolution; endif endif :Load data managers; if ([data.<type>] declares date_start/date_end?) then (yes) :Keep the declared window; else (no) :resolve_simulation_time_window_dates(); if (window unresolved?) then (yes) :Leave the section without a window\n(manager falls back to source coverage); else (no) :Inject canonical date_start/date_end; endif endif :Build recharge chronicle payload\nwith simulation_window; :Validate recharge_chronicle through\nPydantic models; if (mode = observed_csv?) then (yes) :Derive first_year/last_year/time_step\nfrom simulation window; else (no) if (mode = synthetic_generated?) then (yes) if (generator configured?) then (yes) :Normalize inline units and\nseasonal generator parameters; :Build fine synthetic chronicle\nfrom hydrology.synthetic.forcing; :Convert recharge/runoff to m/s; :Aggregate series to simulation boundaries; else (legacy values) :Normalize explicit values to target units; :Build one value per stress period; :Convert recharge/runoff to m/s; endif else (synthetic_csv) :Normalize CSV units; :Resample and align series to\nsimulation boundaries; endif endif :validate_recharge_coverage(); if (coverage_policy = error and invalid?) then (yes) :Raise ValueError; stop elseif (coverage_policy = warn and invalid?) then (warn) :Emit warning and continue; endif while (Next ProcessRun?) is (yes) if (Flow solver run?) then (yes) if (time_grid available?) then (yes) :Use canonical nper/perlen from time_grid; else (no) :Raise ValueError; stop endif :Execute flow solver; else (transport) :Resolve upstream flow model; :Execute transport solver; endif endwhile (no) stop @enduml
